后Kubernetes时代的虚拟机管理技术之kubevirt篇
2021年08月24日

kubevirt是Red Hat开源的以容器方式运行虚拟机的项目,是基于kubernetes运行,利用k8s CRD为增加资源类型VirtualMachineInstance(VMI),使用CRD的方式是由于kubevirt对虚拟机的管理不局限于pod管理接口。通过CRD机制,kubevirt可以自定义额外的操作,来调整常规容器中不可用的行为。kubevirt可以使用容器的image registry去创建虚拟机并提供VM生命周期管理。

Kubevirt的架构

kubevirt以CRD的形式将VM管理接口接入到kubernetes中,通过一个pod去使用libvirtd管理VM的方式,实现pod与VM的一一对应,做到如同容器一般去管理虚拟机,并且做到与容器一样的资源管理、调度规划、这一层整体与企业IAAS关系不大,也方便企业的接入,统一纳管。

virt-api:kubevirt是以CRD形式去管理VM Pod,virt-api就是所有虚拟化操作的入口,这里面包括常规的CDR更新验证、以及console、vm start、stop等操作。

virt-controller:virt-controller会根据vmi CRD,生成对应的virt-launcher Pod,并且维护CRD的状态。与kubernetes api-server通讯监控VMI资源的创建删除等状态。

virt-handler:virt-handler会以deamonset形式部署在每一个节点上,负责监控节点上的每个虚拟机实例状态变化,一旦检测到状态的变化,会进行响应并且确保相应的操作能够达到所需(理想)的状态。virt-handler还会保持集群级别VMI Spec与相应libvirt域之间的同步;报告libvirt域状态和集群Spec的变化;调用以节点为中心的插件以满足VMI Spec定义的网络和存储要求。

virt-launcher:每个virt-launcher pod对应着一个VMI,kubelet只负责virt-launcher pod运行状态,不会去关心VMI创建情况。virt-handler会根据CRD参数配置去通知virt-launcher去使用本地的libvirtd实例来启动VMI,随着Pod的生命周期结束,virt-lanuncher也会去通知VMI去执行终止操作;其次在每个virt-launcher pod中还对应着一个libvirtd,virt-launcher通过libvirtd去管理VM的生命周期,这样做到去中心化,不再是以前的虚拟机那套做法,一个libvirtd去管理多个VM。

virtctl:virtctl是kubevirt自带类似kubectl的命令行工具,它是越过virt-launcher pod这一层去直接管理VM虚拟机,可以控制VM的start、stop、restart。

Kubevirt如何管理虚拟机?

虚拟机镜像制作与管理

虚拟机镜像采用容器镜像形式存放在镜像仓库中。创建原理如上图所示,将Linux发行版本的镜像文件存放到基础镜像的/disk目录内,镜像格式支持qcow2、raw、img。通过Dockerfile文件将虚拟机镜像制作成容器镜像,然后分别推送到不同的registry镜像仓库中。客户在创建虚拟机时,根据配置的优先级策略拉取registry中的虚拟机容器镜像,如果其中一台registry故障,会另一台健康的registry拉取镜像。

虚拟机生命周期管理

KubeVirt虚拟机生命周期管理主要分为以下几种状态:

  • 虚拟机创建:创建VM对象,并同步创建DataVolume/PVC,从Harbor镜像仓库中拉取系统模板镜像拷贝至目标调度主机,通过调度、IP分配后生成VMI以及管理VM的Launcher Pod从而启动供业务使用的VM。
  • 虚拟机运行:运行状态下的VM 可以进行控制台管理、快照备份/恢复、热迁移、磁盘热挂载/热删除等操作,此外还可以进行重启、下电操作,提高VM安全的同时解决业务存储空间需求和主机异常Hung等问题。
  • 虚拟机关机:关机状态下的VM可以进行快照备份/恢复、冷迁移、CPU/MEM规格变更、重命名以及磁盘挂载等操作,同时可通过重新启动进入运行状态,也可删除进行资源回收。
  • 虚拟机删除:对虚机资源进行回收,但VM所属的磁盘数据仍将保留、具备恢复条件。

虚拟机创建流程

虚拟机创建分为创建DataVolume和VMI两个流程:

1. 创建DataVolume后,CDI组件创建对应的PVC并且关联到合适的PV,然后通过临时Importer Pod拉取虚拟机容器镜像绑定到DataVolume生成的PV中,并且将镜像转换成disk.img文件存储在PV中供虚拟机使用。

2. 创建VMI后,等待disk.img转换成功,然后在对应的Node上启动Launcher Pod,并将CDI流程生成的PV挂载到Pod内,当做虚拟机启动的系统盘。Launcher根据VMI的定义生成定义虚拟机的XML文件,然后调用libvirt进程调用Qemu命令创建并且启动虚拟机。VMI会对Launcher Pod状态进行同步,反应VM运行的状态。

Kubevirt如何实现容器与虚拟机交互TBD

容器和虚拟机互通

  • Virtual-Kubelet对应的Node会上报节点上Pod的Endpoint,假定Kubernetes集群和IaaS层平台部署在同一个二层网络下,则集群内容器Pod可以访问VM-Pod,但容器Pod对于VM-Pod不可见;
  • 针对上一点可以通过Macvlan等网络插件,将容器-Pod,降维至二层网络上,实现容器-Pod和虚拟机互通,有一定硬件要求。

如何实现⼀套集群下虚拟机与容器的混合调度与资源隔离

  • Virtual-Kubelet提供的是一个虚拟节点用来向Kubernetes上报Node对象和Pod的状态和资源情况,虚拟机资源和集群内节点资源完全隔离;
  • 在引入Virtual-Kubelet的情况下,需要对Virtual-Kubelet节点配置Taint和Tolerations,保证容器-Pod和VM-Pod调度分离。

服务发现

Virtual-Kubelet,通过Provider实现的API将IaaS层VM信息抽象成对应Pod对象的信息的方式来上报Endpoints,可以通过给CR添加no selector Service,待VM-Pod拉起后补充address至对应的Service

Kubevirt适用场景

由于Kubervirt提供的成熟的虚拟化能力和性能,并且可以直接通过Kubernetes进行统一管理。所以Kubevirt适合在有PaaS层管理平台和Kubernetes集群环境的情况下,通过kubevirt中的单一控制平面简化了对虚拟机的管理,让用户无需关心IaaS层,即可轻松在集群内构建、部署出一台虚拟机进行使用。

如何搭建Kubevirt

Kubevirt安装

1. 前置条件

查看硬件是否支持虚拟化

如果虚拟化不可用,则需要手动开启软件仿真

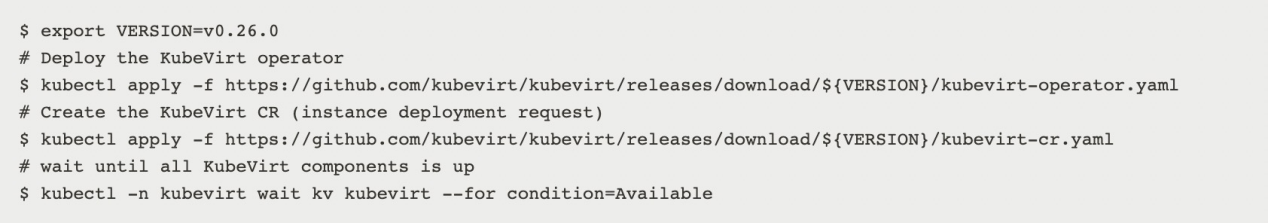

2. 安装Kubevirt组件

直接操作以下命令进行安装

3. 检查实例是否正常运行

4. 启动相关特性

修改kubevirt-config configmap内的数据

5. 安装virtctl

安装kubevirt命令行工具

6. 安装CDI

CDI(containerized-data-importer) 是kubernetes的持久存储管理插件,帮助kubevirt构建磁盘镜像,可以将不同来源的数据源(url、container image、upload....)来填充pvc的能力。

获取最新版,进行安装

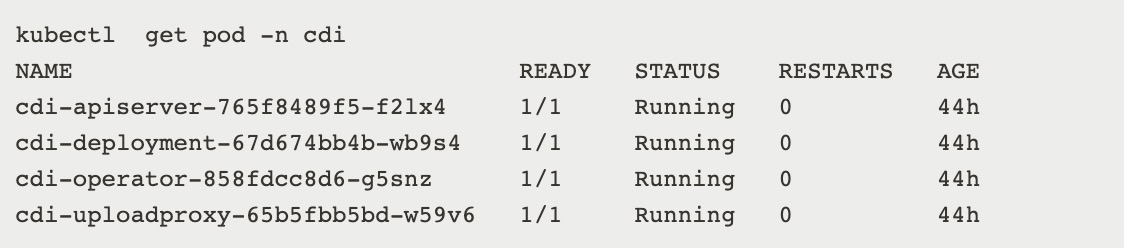

安装完毕后,会在cdi namespace下,启动cdi相关组件

至此,kubevirt安装完毕

创建虚拟机

1. 准备一个虚拟机镜像

通过dockerfile构建出一个虚拟机镜像

2. 创建一台VM

编辑好yaml文件,通过kubectl命令拉起一台vm
